3S 30A Lithium Power Battery Protection Board Drive Drill Motor 12.6V Module (Equalized Charging Optional)
(2 Versions : Enhanced Version & Equalizing Charging Version)
Suitable range: For nominal voltage 3.6V 3.7V lithium battery(Including 18650,26650, lithium polymer batteries)

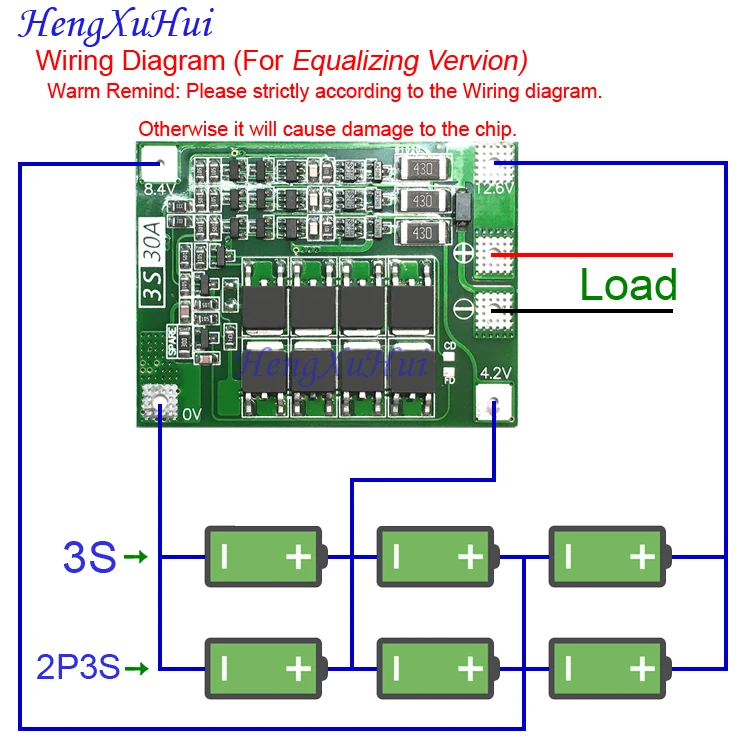

1) Please strictly according to the circuit: 0V/4.2V/8.4V/12.6V Otherwise it will cause damage to the chip.
2) After connection,it need to first charge activation, then will have the output.
3) If used in driving Motor Drill , The battery pack needs 3 pcs 10C-20C Power Battery or 6 pcs 5C-10C power battery.
( Normal 18650 battery could not Drive motor drill )
Do not mix the good battery and poor battery to use.
The internal resistance of 3 battery capacity are closer will be better.
Please buyers know the professional knowledge of this module before buying

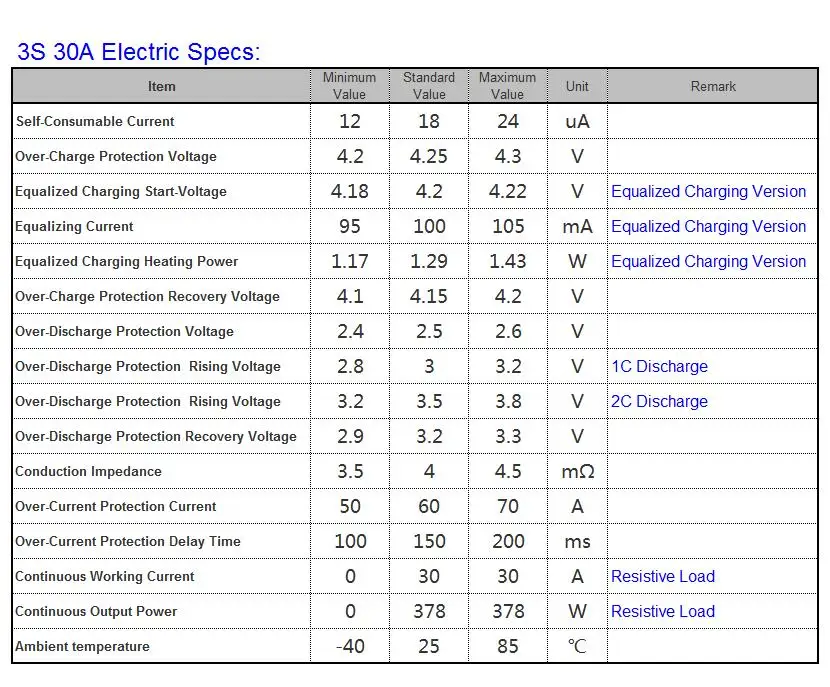

1) Product Size : 41*50*3.4MM(Enhanced Version) , 41*55*3.4MM (Equalizing Charging Version)
2) Net Weight : 7.6g (Enhanced Version) , 8.4g (Equalizing Charging Version)
3) Charging voltage: 12.6V- 13.6V
4) Maximum output current: 30A
5) Maximum charging Current: 20A
6) Enhanced Version : Without any Equalized charging. Starting Current below 60A , Power below 130W Motor Drill and Resistive Load below 378W.
Equalizing Version : With Equalized charging current 100mA. Starting Current below 60A , Power below 130W Motor Drill and Resistive Load below 378W.
5. Package Contents:
1 x PCB Protection Board1
